About This

• 【4K PTZ Camera】Equipped with a 1/2.5-inch high-quality CMOS sensor, it delivers 8.51 megapixels, capturing ultra-high-definition video up to 3840x2160 @ 30fps. Featuring HDMI 2.0, USB .0, and LAN interfaces, it outputs uncompressed 4K/30fps video streams to meet diverse image quality and smoothness requirements. Additionally, it supports 1080P/60 SDI for long-distance transmission. Designed for professional environments including church worship, conference live streaming, lecture recording, summit forums, and large-scale events.

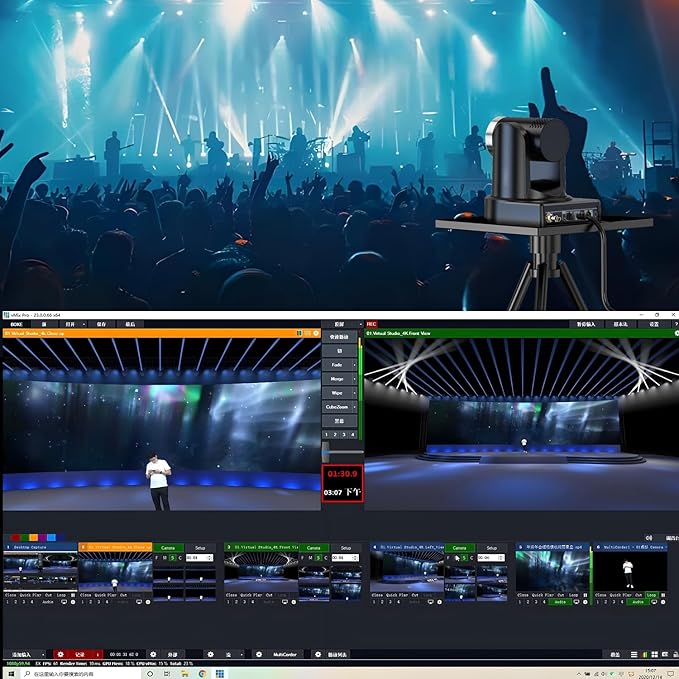

• 【4K 20x Optical Zoom PTZ Camera】Its 20x optical zoom, paired with a 58° wide-angle lens and stable autofocus, captures legible text on A4 paper from up to 15 meters. Compatible with mainstream conferencing platforms (e.g., Zoom, Microsoft Teams), video production switchers, and PTZ controllers, it supports live streaming to YouTube/Facebook via professional software like vMix/OBS, enabling professional multicam production.

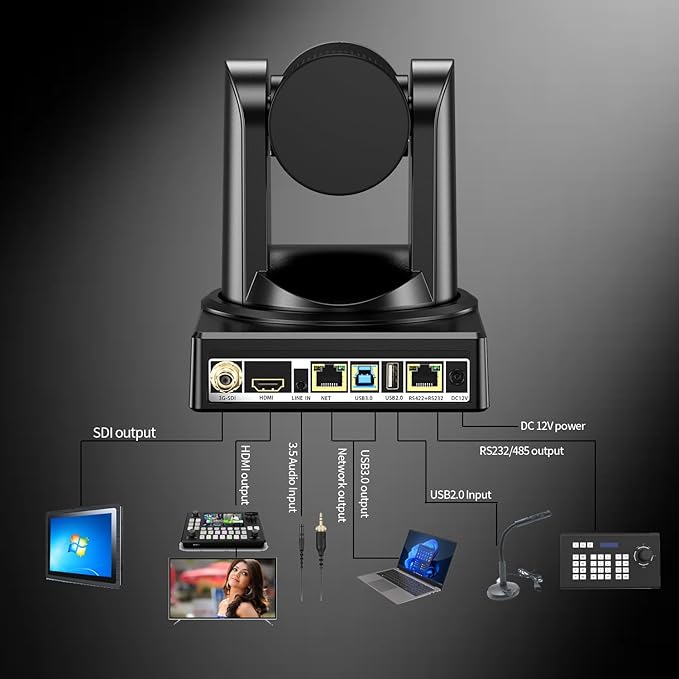

• 【4K Streaming Camera with Multi-Interface Output】Supporting simultaneous HDMI 2.0, USB 3.0, LAN, and 3G-SDI outputs, its SDI interface delivers uncompressed 1080P/60 video over 100 meters without external converters. The built-in OSD menu enables quick configuration, while H.264/H.265 encoding ensures smooth, clear dynamic video in low-bandwidth scenarios. With 2D/3D noise reduction, it maintains high performance in low light. Ideal for live streaming and studio production.
• 【AI Auto-Tracking Camera】Leveraging advanced AI, it detects and locks onto primary subjects (e.g., lecturers, speakers) with precision. The PTZ camera seamlessly tracks targets, always maintaining a perfect view of the speaker or subject. Activate or disable AI tracking instantly via the remote’s dedicated button (F3: On / F4: Off). Ideal for lectures, medical demos, conferences, and training sessions — operates intuitively.

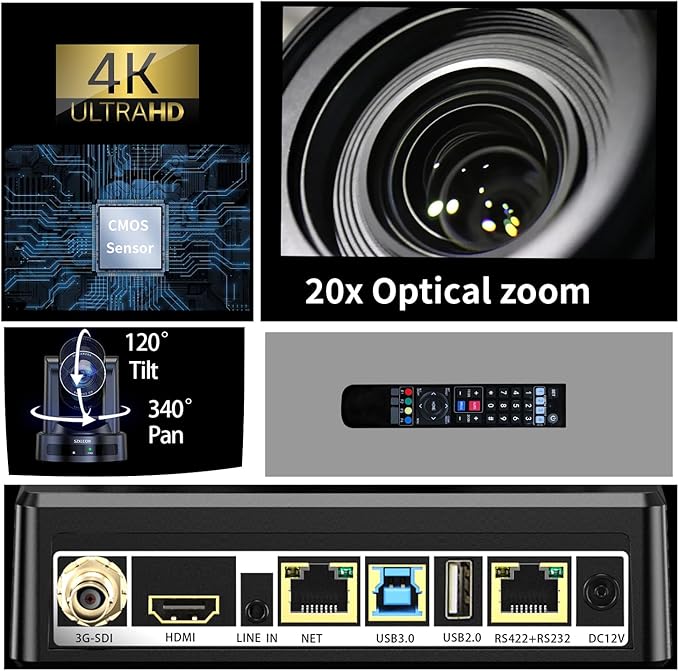

• 【PROFESSIONAL PTZ】 Delivering silent 340° pan and 120° tilt movement, this 4K HDMI camera ensures near-blind-spot coverage in large spaces (e.g., conference rooms, classrooms, exhibition halls). Control via USB, joystick, or RS485/232/LAN. Supports 255 presets (10 configurable by IR remote), with protocol compatibility including ONVIF, RTMP, VISCA, and Pelco-D/P.
• 【EASY TO USE】 Set, preview, and control this 4K conference camera via web browser (ensure computer and PTZ camera share the same LAN). Supports desktop/tripod/wall/ceiling installation, PTZ image flip/mirror functions, and easy setup. Adjust pan/tilt/zoom speeds and other parameters through the built-in OSD menu.
• 【PACKAGE CONTENTS】 4K PTZ camera,12V/2A power adapter, IR remote control,Wall mount bracket, USB 3.0 data cable, User manual

Overview

• Brand : SZXLCOM
• Photo Sensor Technology : CMOS
• Video Capture Resolution : 4K
• Maximum Focal Length : 110 Millimeters
• Maximum Aperture : 1.6 f
• Flash Memory Type : Indoor use
• Video Capture Format : MP4
• Screen Size : 75 Inches
• Connectivity Technology : HDMI, LAN, SDI, USB
• Color : black
